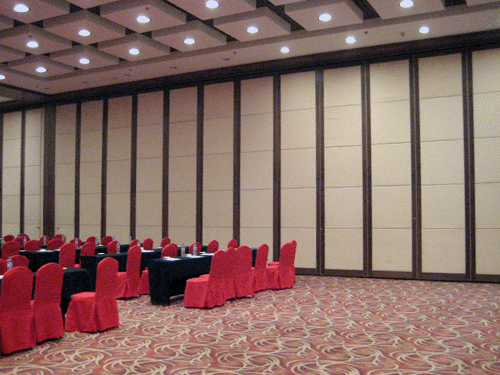

Mobile Partition Wall , Commercial Sliding Doors For Exhibition Hall

Name: Mobile Partition Wall Commercial Sliding Doors For Exhibition Hall
Brand: BUNGE
Price: 1 USD

Brand Name : BUNGE

Model Number : BG65

Place of Origin : China

MOQ : 10 Square Meters

Price : US $ 100 - 300 / Square Meter

Payment Terms : T/T

Supply Ability : 5,000 Square Meters per Month

Delivery Time : 10 working days after received your payment

Packaging Details : Carton package, MDF batten on four section sides ,foam board on both front face

Material : Aluminum

Thickness : 65mm

Surface : Melamine

Type : Sliding Doors

Application : hotel , hall .meeting room and so on

Collect : Folding

Contact Now

Mobile Partition Wall , Folding Internal Doors For Exhibition Hall

Specifications:

Technical Parameter for Partition Panel	Panel Width	500 - 1230mm
	Panel height	2000 - 4000mm
	Sound proof	32 - 38db
	Operation	Manual
	Frame	Aluminum
	Vertical profile	Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside
	Finish options	Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish
	Base options	Plywood, Gypsum, steel, MDF
	Max width	Unlimited
	Panel weight	22 - 35 kg / sq
Pass door selection	door	Single or double door
Seals	Top	Manual
Seals	bottom	Manual

Description :
The operable wall panel construction and finish materials shall consist of Class A rated materials in accordance with BUNGE Standards.

Operation :

Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.

Panels :
The Panels will be made from 9mm MDF boards and shall be 65mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminum frames with interlocking corner construction . The panel faces shall be finished with selected material.
Basic Panels shall be equal in module.
Approx. Weight kg/ square meter : 25 kg
Maximum height : 4000mm.

Panel Surface Finish: The panel surface will be as per the clients requirement finished either in BUNGE factory – China or by others. The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc.)

Seals:

Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system. Retractable seal drop will be 23mm.
Acoustic insulation Material: Rockwool sound absorption glass fiber shall be used.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the wall.

Retractable mechanism: The top and bottom rail of each panel shall incorporate an extruded aluminum box section mechanical seal manually operated by a handle inserted in the panel stile, turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode. Single crank type mechanisms shall activate floor and head seals.
